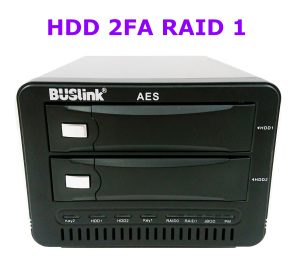

2FA Dual Keys CipherShield 2-Bay RAID 1 HDD USB 3.2 Gen 2 10Gbps/eSATA Encrypted External Desktop Drive
WARNING for California resident
Available In Price Model
32TB FIPS140-2 Colateral 512-bit $1499.99 CSX-32TB2G2R1KKC
36TB FIPS140-2 Colateral 512-bit $1599.99 CSX-36TB2G2R1KKC
40TB FIPS140-2 Colateral 512-bit $1699.99 CSX-40TB2G2R1KKC
44TB FIPS140-2 Colateral 512-bit $1999.99 CSX-44TB2G2R1KKC
32TB FIPS140-2 Bilateral 512-bit $1499.99 CSX-32TB2G2R1KKB
36TB FIPS140-2 Bilateral 512-bit $1599.99 CSX-36TB2G2R1KKB
40TB FIPS140-2 Bilateral 512-bit $1699.99 CSX-40TB2G2R1KKB
44TB FIPS140-2 Bilateral 512-bit $1999.99 CSX-44TB2G2R1KKB

Product Description

A new generation of compact higher speed, high-capacity RAID 0 2-bay drive

This drive is perfect for fast data transfer and large-capacity storage needs. Its new USB 3.2 Gen 2 interface now supports 10 Gbps of fast data transfer. This 2-Bay RAID drive supports RAID 1 data redundancy and automatic backup. In addition, the eSATA interface provides additional connection possibilities. Removable drive trays help with hot plug replacement of the drive. Drive intelligent sleep function is supported. Cooling fan maintains safe operating temperature. Skidproof and shockproof rubber feet mat ensure safe operation. This drive is perfect for data storage and backup.

CipherShield Dual Keys 2FA Two-factor Authentication FIPS 140-2 hardware encryption

  • Colateral – two-factor authentication with two different keys, keys can be plugged in and removed to store away while powered on. It will remain authenticated until the power is turned off. Suitable for when human insertion of the key is feasible such as a local office.
  • Bilateral – two-factor authentication with two different keys, keys must remain plugged in while powered on to remain authenticated. Suitable for when human insertion of key is not feasible such as data center or remote location.

CipherShield drive safeguards and protects classified information when they are too important to be left in the hand of one individual. To gain access to the drive, authentication will be based on one unique Cipherkey. It requires one key to be plugged in all the time while working with the drive. It is like getting a safe deposit box that takes one key to open. It is suitable for group settings where more than one individual is working on highly confidential projects. i.e. blueprints for the company’s new products, top secret programs, highly confidential legal cases, sensitive customer records, and financial information.

CipherShield design features a chip embedded in the access key which matches the AES encryption module on the controller board. The drive will automatically lock down its content once the key is unplugged, or power is shut off. And without the access key, data will not be seen or accessed in the event of theft or loss of the external drive. Data stored on the hard drive are safeguarded by a hardware-based National Institute of Standards and Technology (NIST) certified industrial strength AES (Advanced Encryption Standard) cryptographic engine. The advantage of hardware encryption over software encryption is that you need not be concerned about Trojans/viruses or software upgrades, which results in a decrease in the total cost of ownership. Since CipherShield encrypts data independent of the operating system; removing the drive and connecting it directly to the SATA BUS will not defeat the encryption. The unit is bundled with two keys and registration is required for key duplication.

Features

  • RAID 1 (mirroring) with automatic data backup and redundancy
  • 2 drives included and installed in trays
  • The removable 3.5” drive tray supports easy hot-plug replacement of the drive
  • Support drives intelligent sleep function
  • Cooling fan maintains a safe operating temperature
  • Skidproof and shockproof rubber feet mat ensure safe operation
  • NIST FIPS 140-2 compliant AES hardware encryption with 512-bit encryption
  • Conforms to HIPAA regulation regarding patient privacy and to Sarbanes-Oxley regarding corporate financial and accounting practice
  • CipherShield Smart Insert technology with Cipherkey to authenticate the drive
  • FDE (Full Disk Encryption) encrypts the whole drive
  • Real-time “on-the-fly” encryption without any performance degradation
  • Faster, easier to use, and provide better security than software encryption
  • No software to run or install
  • No long, complicated PIN/password to remember
  • Operates independently to the OS: does not require separate drivers
  • The encryption key is on the removable hardware key; can be removed and stored away to prevent unauthorized access
  • Self-powered, AC adapter included
  • Transfer rate:
    • USB 2.0: Up to 480 Mbits/s
    • USB 3.2 Gen 2: Up to 10 Gbits/s
    • eSATA: Up to 6.0 Gbits/s
  • NTFS format (can be reformatted for Mac or Linux)
  • TAA compliant, ECCN: 5a992.c, HTS: 8471705065

System Requirement

  • eSATA port with AHCI mode to support hot-plug
  • USB 3.2 Gen 2 SuperSpeed+ port to achieve 10 Gbps transfer speed
  • Backward compatible with USB 2.0 Hi-Speed port with USB 2.0 transfer speed
  • Mac OS X 10.4 or later
  • Microsoft Windows 11, 10, 8, 7, Vista, XP
  • Windows Server 2020, 2019, 2016, 2012, 2008, 2003. It does not work with the 2000 Server
  • Linux
  • Larger than 2TB requires GPT support; does not support Windows XP

Package Contents

  • 2-Bay RAID external drive
  • USB 3.2 Gen 2 A to B cable
  • eSATA cable
  • 4 CipherKeys
  • 12V 3A DC Full range switching power adapter
  • User Manual
